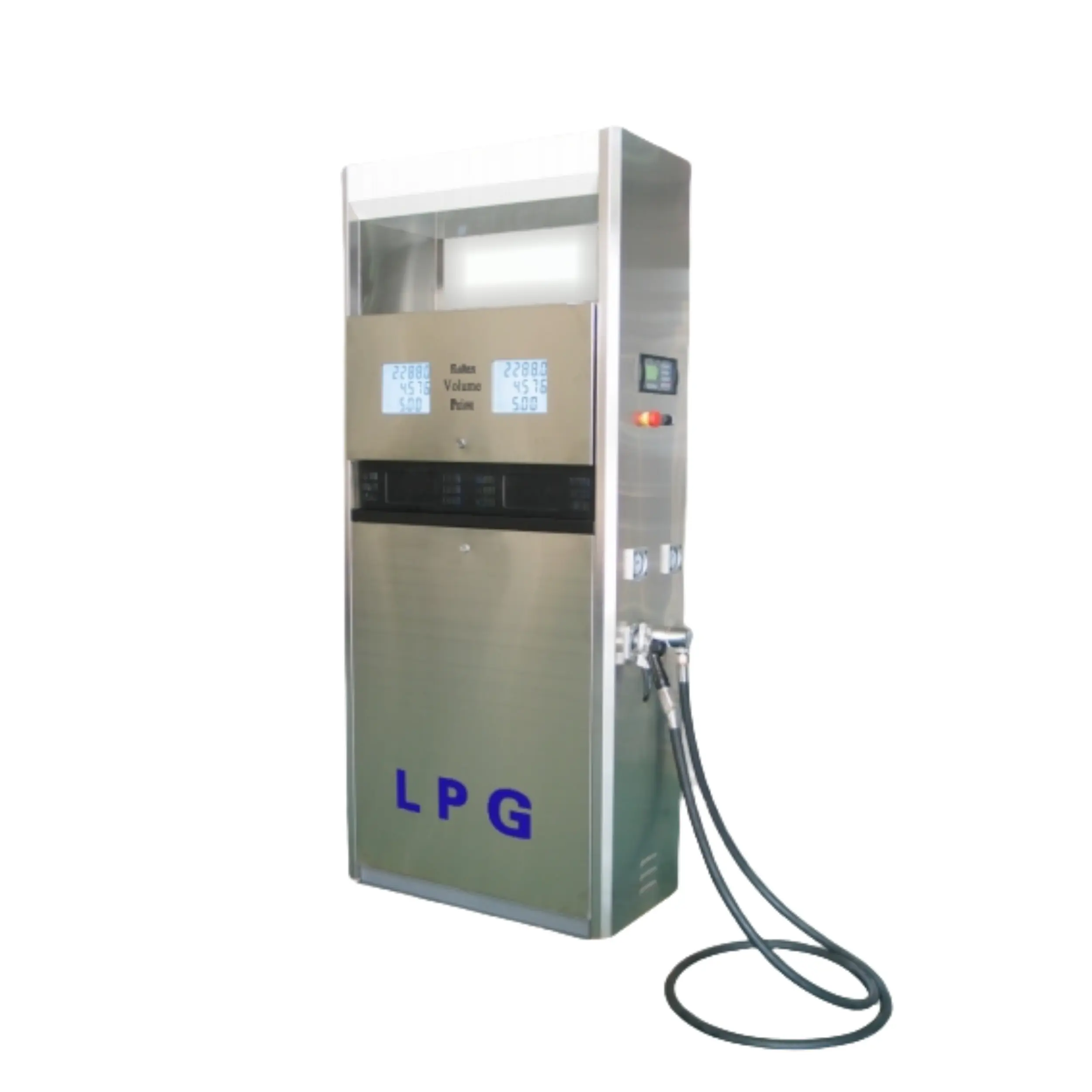

Commercial LPG Dispenser for Gas Stations & Industrial Use

Products Description

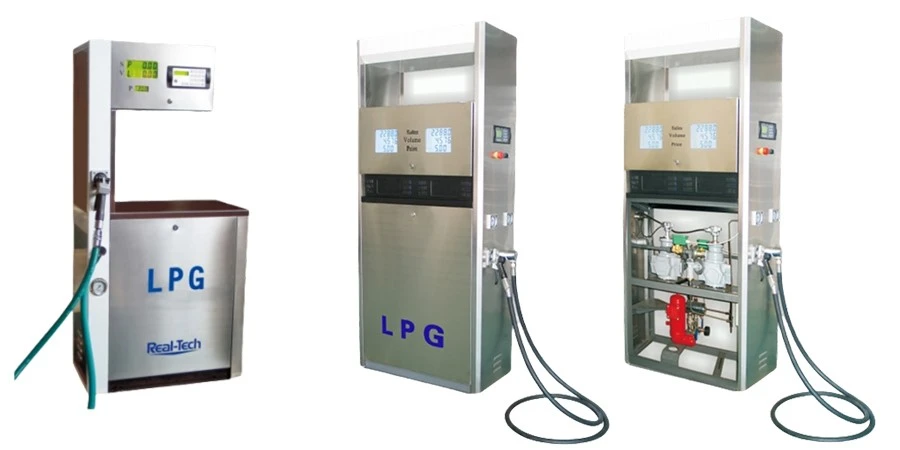

LPG Dispenser

Our LPG Dispenser is a high-performance, reliable fueling system designed for commercial, industrial, and automotive LPG (Liquefied Petroleum Gas) refueling applications. Built with durable materials and advanced metering technology, it ensures precise fuel measurement, leak-proof operation, and user safety, making it ideal for gas stations, fleet refueling, and industrial LPG distribution.

High-Precision Metering

Equipped with a high-accuracy flow sensor (±0.5% error margin) for fair and reliable billing.

Robust & Safe Construction

Stainless steel nozzles & reinforced hoses resist corrosion and wear.

User-Friendly Operation

Simple touchscreen/keypad interface for easy control.

Versatile Compatibility

Suitable for vehicles (Autogas), forklifts, cooking gas stations, and industrial cylinders.

Technical Specifications

Ambient Temperature:	(-40~+55)°C
Power:	AC220V 20%(501Hz)
Flow rate:	1~45 liter/min
Measurement precision:	0.5%
Rated working pressure:	2.2MPa
Density preset range:	0.5000-0.6999
Gas-filling preset range:	1~9900 L or kg
Rating power:	<100W
Unit price range:	0-9999,0~999999(changeable)
Single range:	1-9900.00,1-999900.00(changeable)
Accumulative range:	0-9999999999.99
ATC(automatic temperature compensation) function.	Automatic proportion adjust for butane and propane.
Electronic Calibration.	Printer (option).
Fueling times limit function.	Stop fueling by integer sale.
Can set the decimal point for the display, so can be used in many country with different currency rate.	Leaves the communication ports, so it can comm.

Product Features

1.Smart Interaction and Convenient Payment

Multiple Payment Methods: Supports IC cards, mobile payments (WeChat/Alipay), UnionPay QuickPass, and customized e-wallets, enhancing the user payment experience.
Dynamic Display Interface: Equipped with a high-definition color display, it displays real-time unit price, gas volume, amount, and device status, and supports a carousel advertisement function (optional LED scrolling screen).
Data Interconnection: Seamlessly connects to the gas station management system via an RS485 interface, enabling real-time data upload and remote control.

2.Excellent Safety and Protection System

Explosion-proof Design: The entire unit is explosion-proof certified, and key components (such as the solenoid valve and flowmeter) are made of explosion-proof materials, suitable for flammable and explosive environments.
Multiple Protections:

A built-in overflow valve (with a shutoff flow rate of 1.6-1.8 times the maximum operating flow rate) and an emergency shut-off valve prevent leaks caused by pipe rupture.
The refueling hose features a break-resistant design, a pressure resistance of 2.5 MPa, and an anti-static grounding device.
The enclosure is IP54 rated for dust and water resistance and can withstand extreme temperatures from -30°C to 55°C. Highly Efficient Energy 3.Saving and Precise Control

Intelligent Pressure Regulation: Automatically adjusts filling parameters based on ambient temperature and pressure, reducing gas volatilization and energy consumption by over 30%.
Dual-Mode Filling: Supports both fixed-volume and fixed-price filling, with automatic shutdown to prevent overfilling.
Low Leakage Risk: A modular hydraulic system and precision sealing technology ensure leak-free operation.

4.Humanized Design and Flexible Configuration

Modular Structure: Single or dual-nozzle options available, supporting parallel operation of multiple units to accommodate various gas station sizes.
Easy Maintenance: Removable filters, independent metering modules, and quick-change design for consumable parts reduce maintenance costs.
Customizable Appearance: Available in a variety of colors and logos, paired with a 360° LED advertising screen for enhanced station brand recognition.

Application

LPG gas dispenser application scenarios

Empowering clean energy with technology and redefining the efficiency and safety standards of gas stations!

LPG filling stations

Public Transportation:

Bus and taxi refueling stations offer rapid refueling to ensure operational efficiency.

port

Logistics and Freight:

LPG-powered conversions for long-distance trucks and port machinery reduce fuel costs.

Energy saving

Distributed Energy :

Small skid-mounted gas filling stations can be flexibly deployed in remote areas or temporary sites.

LPG tank

Policy Support Scenarios:

Station construction subsidies and tax incentives are available for compliance with the National Green Energy Alternative Action Plan.

Company Introduction

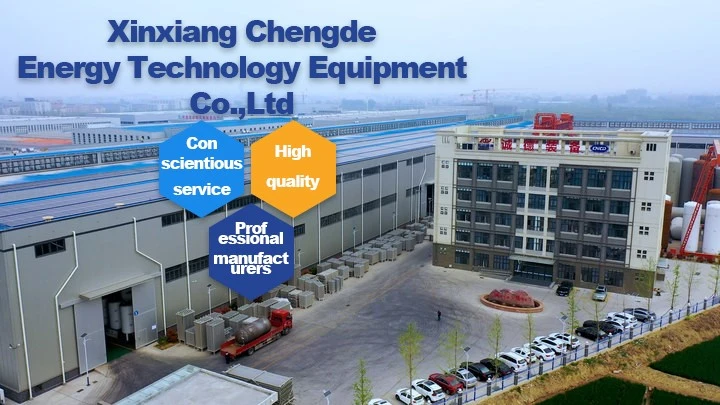

Xinxiang Chengde Energy Technology Equipment Co.,Ltd is a Science and technology-based enterprise dedicated to the research and development, design, manufacturing, installation and service of pressure vessels, cryogenic equipment, gas equipment, marine products, and special vehicles.
