Co2 Recovery System

Your Professional Co2 Recovery System Supplier





Xinxiang Chengde Energy Technology Equipment Co., Ltd.(formerly Chengde Gas Equipment Co., Ltd.) was established in 2002. We are a company dedicated to the research, design, manufacturing, and installation of pressure vessels, cryogenic equipment, and gas equipment etc.




First 12 Last

Why Choose Us


Our Certificate
We have been awarded the National Low-Temperature Testing Center Product Type Certification, Henan Famous Brand Product, Henan Province High-tech Enterprise. We are authorized for foreign trade exports. Additionally, we have obtained the ISO 9001 International Quality System Certification, China Classification Society Factory Approval Certificate, and Ministry of Industry and Information Technology Vehicle Access Certificate, among other honors.



Production Market
We have a good reputation and sales performance in the Chinese market,our products also have exported to more than 68 countries,such as Thailand,Indonesia,Egypt,Peru,Spain,Poland, Russia,Pakistan,Myanmar,Kazakhstan,Mongolia,Oman,Iraq,Saudi Arabia,Georgia. Burma, Korea, Kampuchea, Philippines, Romania, India etc.also have branch office in the Vietnam.



Our Services
Provide professional technical support and maintenance services to ensure long-term stable operation of the storage tank.Conduct regular customer satisfaction surveys to continuously improve service quality.



Production Capacity
Our company has 1 equipment industrial park and 3 manufacturing bases, 2 production lines for mobile tank and normal pressure tanks, and has prepare materials, production, assembly, pressure testing, vacuum, painting, finished product workshops, and a standardized workshop. It covers an area of 69,000m², more than 500 employees, and has an production scale of more than 2,000 units (sets) in one year.



Co2 Recovery System Specifications



Product Name

CO2 Recovery Plant

Applicable Industries

Chemical & Food & Beverage Industry, Energy & Mining & Medical, Others

Brand

ASU Tech

Main Equipment

CO₂ Supercharging Compressor, Desulfurization Tower, Drying Tower

Pre-Cooler, Condensing Evaporator, Rectifying Tower, CO₂ Storage Tank

Technology

Carbon Capture Technology

Purity

99.9%-99.999%

CO2 Storage Temperature

-20~-30℃

Storage Pressure

2.0Mpa(G)

Capacity

20-300kg/h

Power Consumption

0.45~0.6 kWh/kg CO₂

Weight

Depend on Product Model

Warranty

1 Year





Key Features

The whole set of equipment adopts a targeted design method, that is, different designs are carried out for the raw gas of different components of the user, while ensuring product functions, minimize equipment investment and operating energy consumption;



The equipment is concise, the area is small, and the installation is convenient;



It adopts a distributed control system(DCS system), which is easy to operate and can realize unattended operation for 24 hours continuous operation;



The carbon dioxide contact part of the whole set of equipment is made of stainless steel, which is safe and stable.

Co2 Liquefaction Recovery Plant





Applications
01.

Food and Beverage Industry

CO2 is a byproduct of the fermentation process. Recovery systems capture and purify this CO2 for reuse in carbonating beverages and packaging.

02.

Refining and Chemical Industry

Recovered CO2 can be injected into oil reservoirs to increase oil extraction.

03.

Dry Ice Production

CO2 recovery systems capture and reuse CO2 from the flash evaporation process in dry ice production, minimizing waste and reducing costs.

04.

Pharmaceutical Industry

CO2 recovery systems provide GMP-compliant CO2 for use in pharmaceutical applications, such as supercritical fluid extraction.

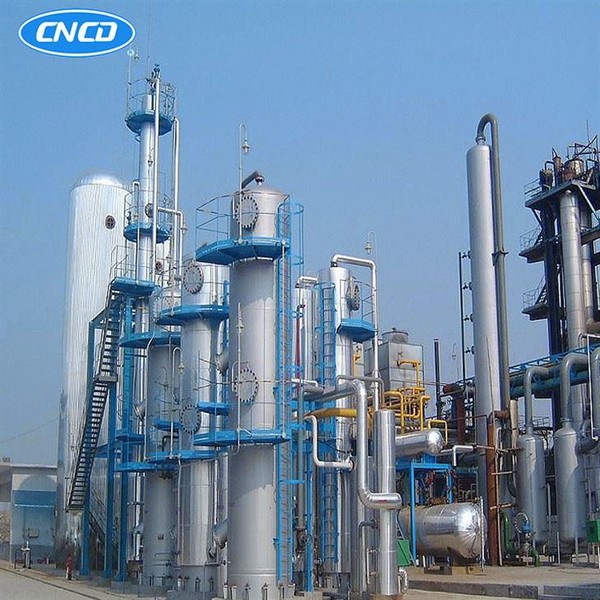

On-site Co2 Unit 99.99% Chemical Tail Gas Carbon Dioxide Equipment



How it Works

Combustion Reaction: LNG/LPG burns with oxygen, producing CO₂, HO vapor and heat.


Gas Treatment: Flue gas passes through a cooling tower and desulfurization column to remove impurities.


Gas Compression: Purified CO₂is compressed to 8 bar by a CO₂ compressor.


Pre-cooling: A pre-cooler lowers the compressed CO₂ temperature to 5–10 °C.


Adsorption Drying: Pre-cooled CO₂flows through an adsorption dryer to remove residual moisture.


Deep Cooling: A mixed-refrigerant heat exchanger cools the dried CO₂to its liquefaction point.


Storage & Supply: Liquefied CO₂is stored in a cryogenic tank, ready for delivery.



Installation & Commissioning Service


Free On-Site Installation Guidance

We provide 14 days of free on-site installation guidance.Buyer only covers airfare, accommodation, and local transportation.

Professional Commissioning

Our engineers ensure the equipment meets design capacity and gas purity, running smoothly and efficiently.

Operator Training

On-site training for your team on operation, maintenance, and troubleshooting.

24/7 Online Technical Support

Free remote support available anytime to solve problems quickly.



Warranty Policy





Warranty Period: All products come with 18 months free warranty from the date of purchase.
Warranty Coverage: During the warranty period, we will repair or replace parts free of charge for defects related to product quality.
Out-of-Warranty: Repairs after the warranty period will incur a fee. Please contact customer service for details.



Our Certificates


productcate-1-1



FAQ

Q: How long is your delivery time?

A: A: Delivery time depends on the type of machine you are purchasing.
     B: For Cryogenic ASU, the delivery time is at least 3 months.
     C: For Cryogenic Liquid Plants, the delivery time is at least 5 months.

Q: Are you manufacturer or trade company?

A: We are professional gas generator factory ,we produce gas recovery plant,oxygen generator, nitrogen generator, hydrogen generator.

Q: Can we use our own logo?

A: Yes, we can paint your logo on the body of the equipment.The PLC supports displaying your logo.

Q: Can you provide sample?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: What is your term of payment?

A: A: 30% T/T in advance, with the balance paid before shipment.
     B: 30% T/T in advance and an irrevocable L/C at sight for the balance.
     C: Terms are negotiable.

We're professional co2 recovery system manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy co2 recovery system in stock here from our factory. For price consultation, contact us.
