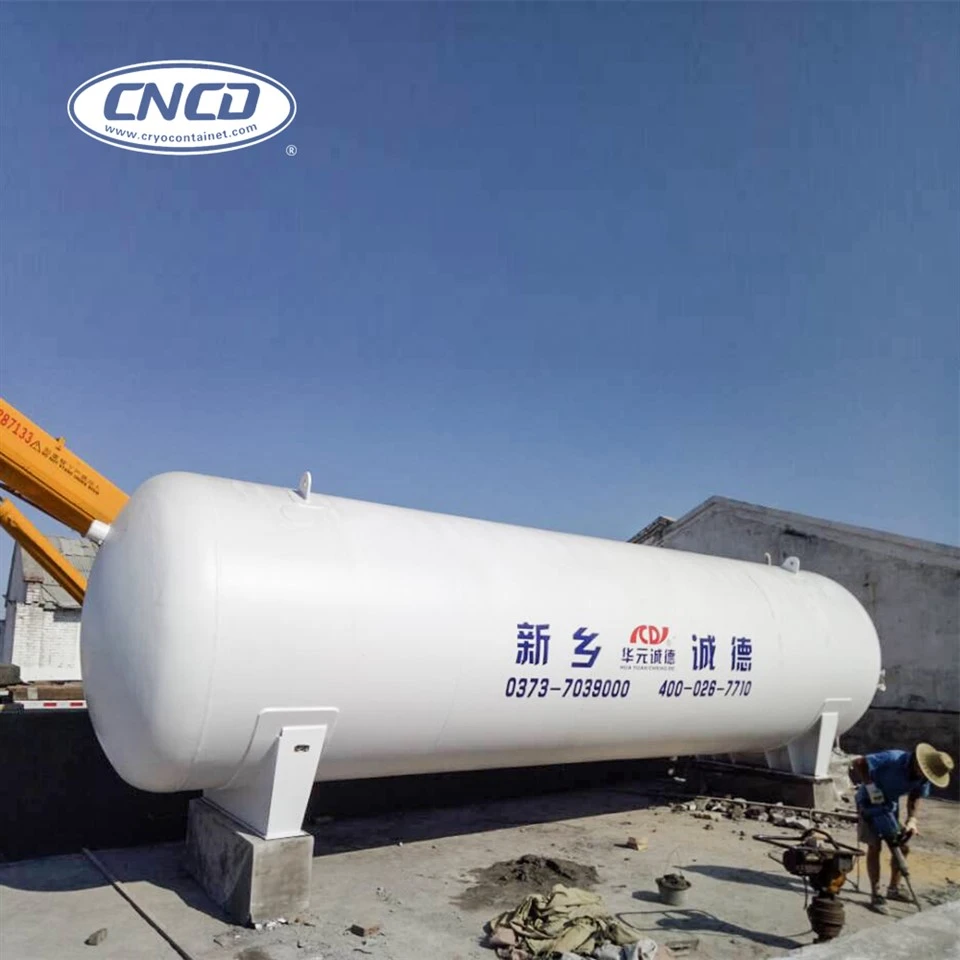

50m3 Stainless Steel Underground Lpg Gas Tank Propane Tanks Price
Products Description
LPG storage tanks include compressed gas or liquefied gas storage tanks, etc. LPG storage tanks can be divided into fixed volume storage tanks and movable volume storage tanks according to whether the volume of the container changes. Large fixed volume LPG storage tanks Made into a spherical shape, and small ones made into a cylindrical shape. The movable volume storage tank is also called the low pressure gas storage tank, commonly known as the gas cabinet. Its geometric volume can be changed, the airtightness is tight, and there is no air leakage, and it can balance the air pressure and adjust the air supply. The pressure is generally not more than 60MPa.

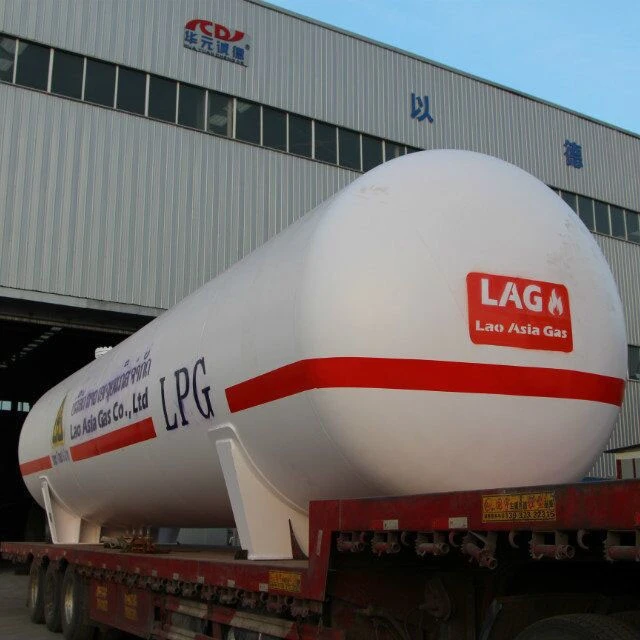

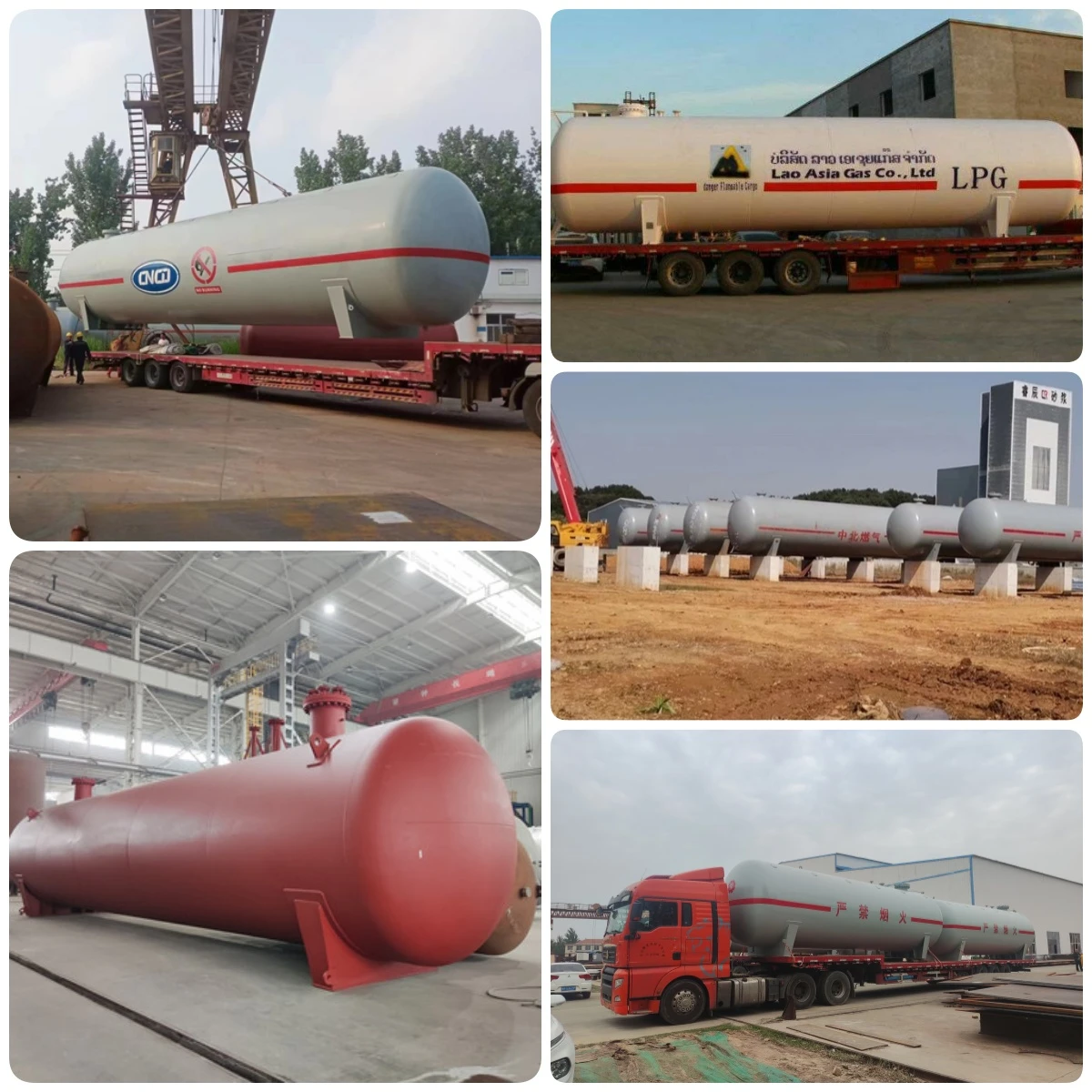

product display
Product Parameters
|
LPG Gas Tank Type |
III |
|
Capacity of LPG Tank |
50m3 |
|
Orientation of LPG Tank |
Horizontal Single Layer LPG TANK |
|
Working Pressure |
1.63MPa |
|
Design Pressure |
1.77MPa |
|
Max.allowance working pressure |
1.82MPa |
|
Working Temperature |
-19~50℃ |
|
Design Temperature |
-20-54℃ |
|
Medium of LPG Tank |
LPG (Propane) |
|
Density of Medium |
560 |
|
Main Material |
Q345R |
|
Filling Ratio |
0.9 |
|
Setting Pressure of Safety Valve |
1.82MPa |
|
Design Life |
20 Years |
|
Heat Treatment |
Post-weld heat treatment for LPG Tank |
|
Hydrostatic test pressure |
2.28MPa |
|
Air tightness test pressure |
1.77MPa |
|
Design, Manufacturing and Inspection Standard |
GB150/ASME for LPG TANK |
|
Products can be also custom-made according to special requirements. |
|
why choose us?
We are looking for a cooperative partner to expand our business.
SAFE
we are committed to man-ufacturing only the most safe and the best quality products
PROFESSIONAL
23+Years experience
20+ engineering techni-cians
SERVICE
Comprehensive one-stop & 24 hours services for you
CERTIFICATES
ASME, CE, ISO, BV,etc
QUALITY
3PE anti-corrosion layer + cathodic protection, strong corrosion resistance
GUARANTEED
20 years design service life warranty within 365 days

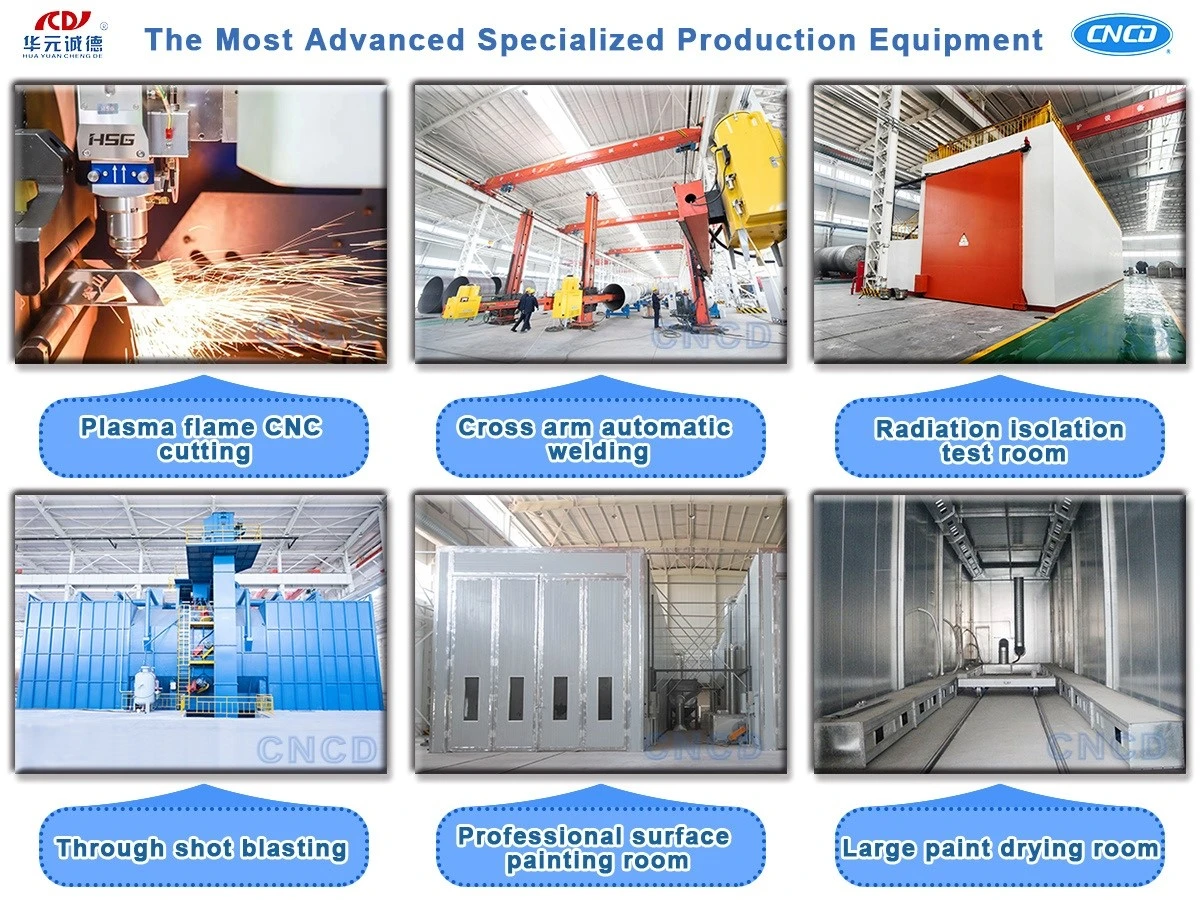

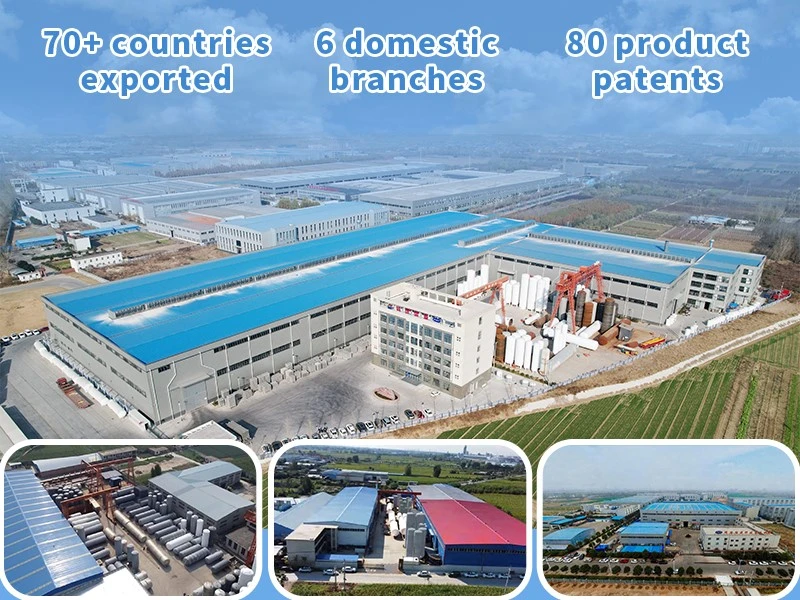

factory display
Xinxiang Chengde Energy Technology Equipment Co.Ltd(original Chengde Gas Equipment Co. Ltd.) was founded in 2002,company is located in Industrial Park,Fengquan district,Xinxiang city, Henan province.with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation.The company has been committed to the pressure vessels.Low-temperature cryogenic equipment and gas equipment in the field of research and development design manufacture and installation.
Our main products have cryogenic liquid storage tank,LNG storage tank,cryogenic liquid pump,ambient vaporizer, water bath vaporizer, LPG electric vaporizer,cryogenic liquid cylinders(VGL),cryogenic nitrogen dewar container,cryogenic liquid micro tank,ISO tank container,LPG storage tank,semi-trailer tank,air separation plant etc.Liquid oxygen,nitrogen,argon,carbon dioxide and other industrial gases complete equipment engineering;LNG refueling station,LNG vaporizing station,Storage station, peak regulating station complete sets of equipment engineering.
The company has 69,000 square meter for workshop.Our company have exported products to foreign countries more than 23 years have rich experience in production and exported,products have exported to more than 70 countries also have branch office in the Vietnam.
Products Description
Customer Photos
Exhibitions
FAQ
Q: How to detect leaks in underground storage tanks?
A: Equipped with double-layer tanks + leakage sensors, data is uploaded to the monitoring center in real time.
Q: How to control the gas supply balance when multiple tanks are connected in parallel?
A: Optional intelligent busbar, automatic switching of gas source, to ensure stable pressure.
Q: How long is the maintenance cycle of the storage tank?
A: It is recommended to conduct a comprehensive inspection once a year, and we provide a professional maintenance team
Q: Do your products meet international standards? What are the certifications?
A: Our products are in full compliance with international standards and have been certified and certified by many international standards, including ASME,CE,ISO, etc.
Q: Can you provide drawings before delivery?
A: Of course, we are always ready to provide you with the drawings of the products you need for confirmation.
Q: Can I customize the products I need?
A: Of course, if you think our regular product model does not meet your needs, you can contact us, we will customize the most suitable for your needs.
Q: How to deal with the quality problem of the product after purchase?
A: Our products are of good quality and usually there won't be any problems. However, in case of product problems, you can immediately contact us, we will provide you with remote guidance and replacement parts or other services.
