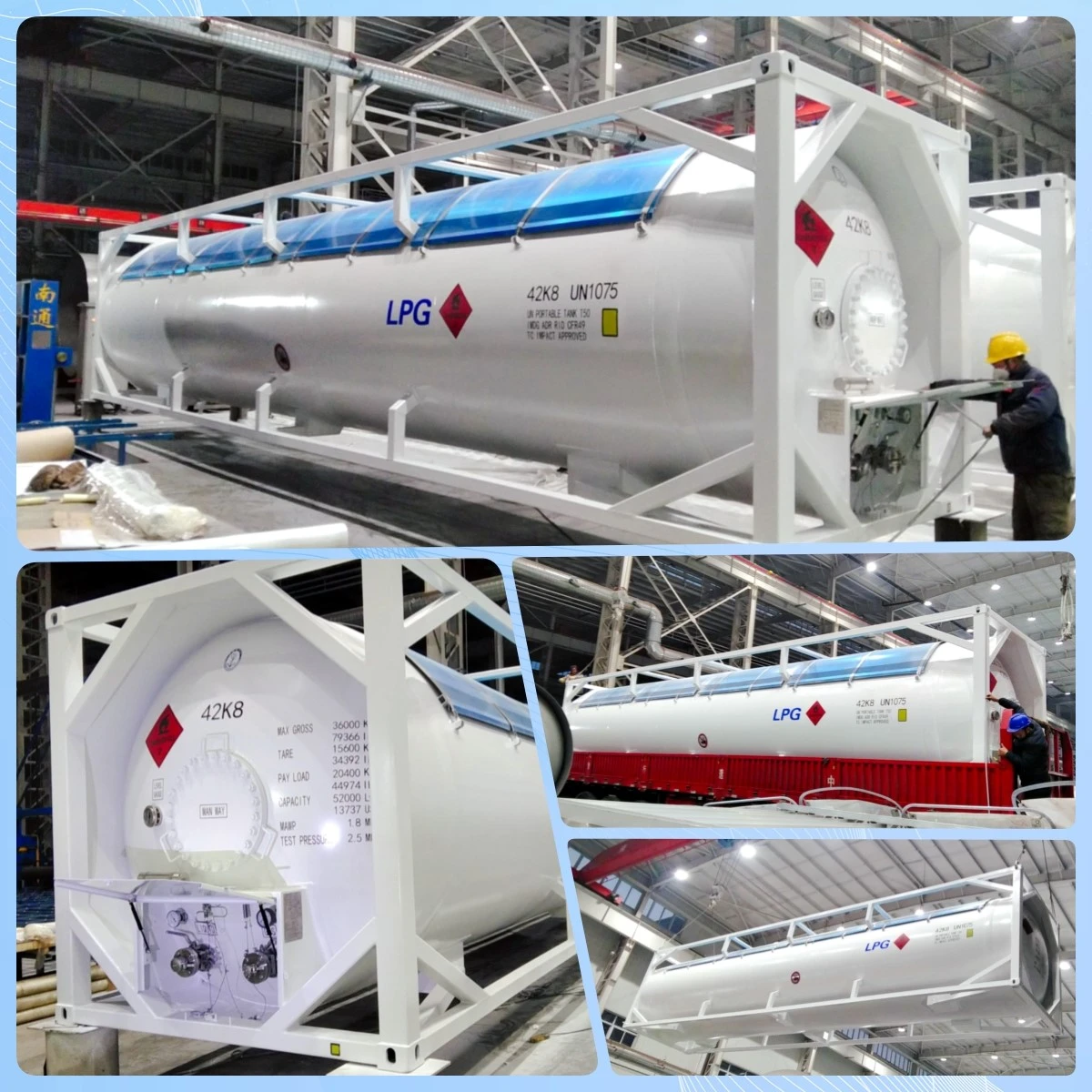

20ft lpg iso tank container
Product Overview

20ft lpg iso tank container have the following characteristics:
Using sealed constant temperature equipment 620 degrees high temperature heat treatment to remove stress and treatment in place; The use of steel shot sandblasting paint rust removal treatment, spraying, purging and other advanced technology, so that the tank surface paint durable and not corroded!
Strict quality evaluation of the material, appearance size, weld quality, operation quality, installation quality, internal devices and safety accessories of the product.
Routine physical and chemical inspection of tank materials such as: mechanical properties and chemical composition.
The welded joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray non-destructive testing and magnetic particle detection. Test the tightness, pressure resistance, and all technical indicators that can affect the safe operation of the product.
A, B type weld X-ray inspection, grade II qualified. C, D type weld magnetic particle inspection, I qualified.
|
Name |
20ft lpg iso tank container |
|
Tank Type |
T50 |
|
Capacity(M3) |
22.5 |
|
Design Pressure(MPa) |
1.77 |
|
Design Temp.(℃) |
-40~+55 |
|
Cargo Carried |
Propane,LPG |
|
Outer Size(mm) |
6058*2438*2591 |
Company Information

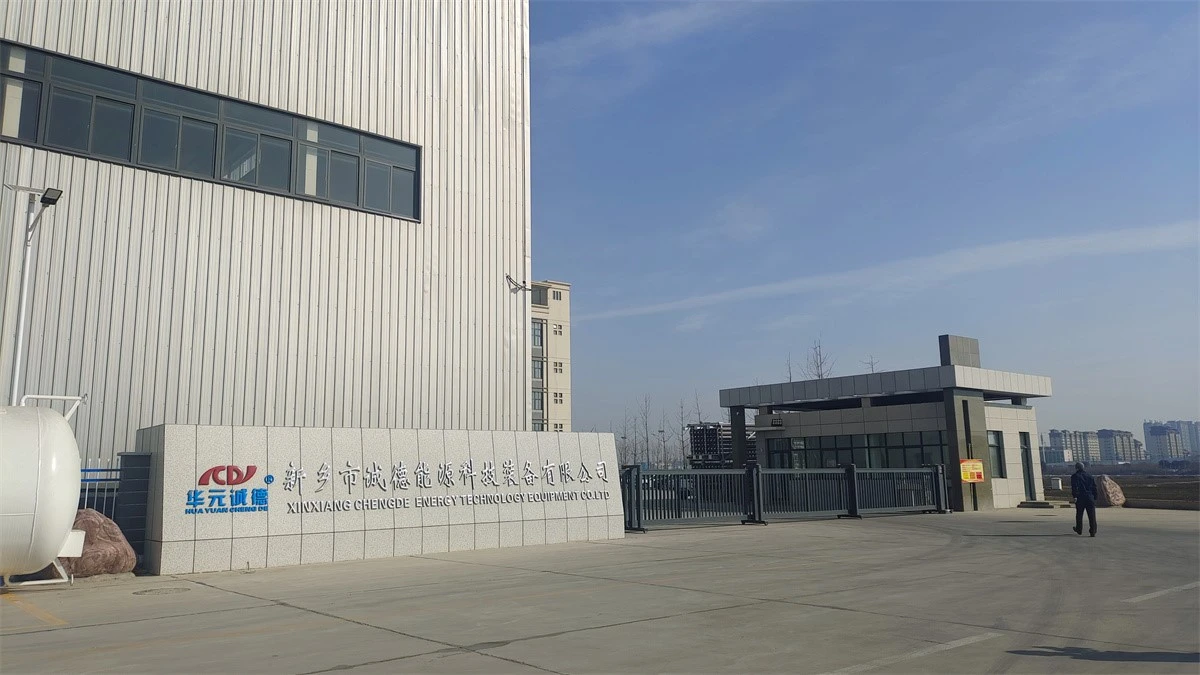

Xinxiang Chengde Energy Technology Equipment Co., Ltd. (CNCD Company) was founded in 2002, company is located in Industrial Park, Fengquan district, Xinxiang city, Henan province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation.
