Products Description
The 5 cubic meter liquid carbon dioxide storage tank is a vertical or horizontal pressure vessel designed for low-temperature liquid storage. It adopts the internationally leading vacuum powder insulation technology and is suitable for storing liquid carbon dioxide (LCO₂). It is widely used in food freezing, industrial gas filling, chemical reaction cooling, fire extinguishing systems and dry ice manufacturing.
|
Design Specification
|
||
|
Design Standard
|
GB150.1~GB150.4-2011 (Pressure vessel)
GB/T18442-2011 (Fixed vacuum insulated cryogenic pressure vessel) TSG 21-2016(Safety technical supervision regulations for stationary pressure vessels)
|
|
|
Model:CFL20/2.16
|
Inner Vessel
|
Outer Vessel
|
|
Medium
|
LCO2
|
Perlite
|
|
Working temperature:(°C)
|
-40~-18
|
Normally
|
|
Working Pressure:(Mpa)
|
2.16
|
-0.1
|
|
Minimum design metal temperature: (°C)
|
-40
|
-20
|
|
Design Pressure: (Mpa)
|
2.27
|
-0.1
|
|
Corrosion allowance:(mm)
|
0
|
1
|
|
Welding joint coefficient:
|
1
|
0.85
|
|
Material:
|
16MnDR
|
Q245R
|
|
Full Volume: (m³)
|
31.6
|
54.6
|
|
Effective Volume:(m³)
|
30
|
23
|
|
Air pressure test pressure
(MPa):
|
2.61
|
0.11
|
|
Vessel Thickness:(mm)
|
20
|
22
|
|
Head Thickness:(mm)
|
8
|
10
|
|
Dimensions:(mm)
|
8875*2900*2900(Can be customized)
|
|
|
Filling Rate:(%)
|
95%
|
|
|
Design life: (Years)
|
20
|
|
|
Tank empty weight:(kg)
|
17961
|
|
Product advantages1. Efficient insulation, energy saving and consumption reduction
- Adopting multi-layer vacuum powder insulation technology, the vacuum degree of the interlayer is ≤2Pa, combined with high-purity pearl sand filling, effectively reducing heat conduction, daily evaporation rate ≤0.2%, saving 15%-20% energy compared with traditional storage tanks.
- Equipped with double safety valves, bursting discs and pressure remote monitoring system, automatic pressure relief when overpressure;
- The inner tank is made of 304 stainless steel, which has strong corrosion resistance and a service life of more than 20 years;
- The vacuum interlayer is equipped with a radiation shield to prevent external heat radiation from causing the storage tank to heat up.
- Compact structure, support vertical or horizontal installation, small footprint;
- Modular design, support container transportation, reduce international logistics costs;
- The interface position and specifications can be customized according to customer needs to adapt to different filling equipment.
- Integrated level gauge, pressure gauge and temperature sensor, supporting remote data transmission;
- Provide Internet of Things (IoT) module to achieve real-time monitoring and early warning of storage tank status;
- Equipped with professional maintenance manuals and 24-hour after-sales team to ensure stable operation of the equipment.

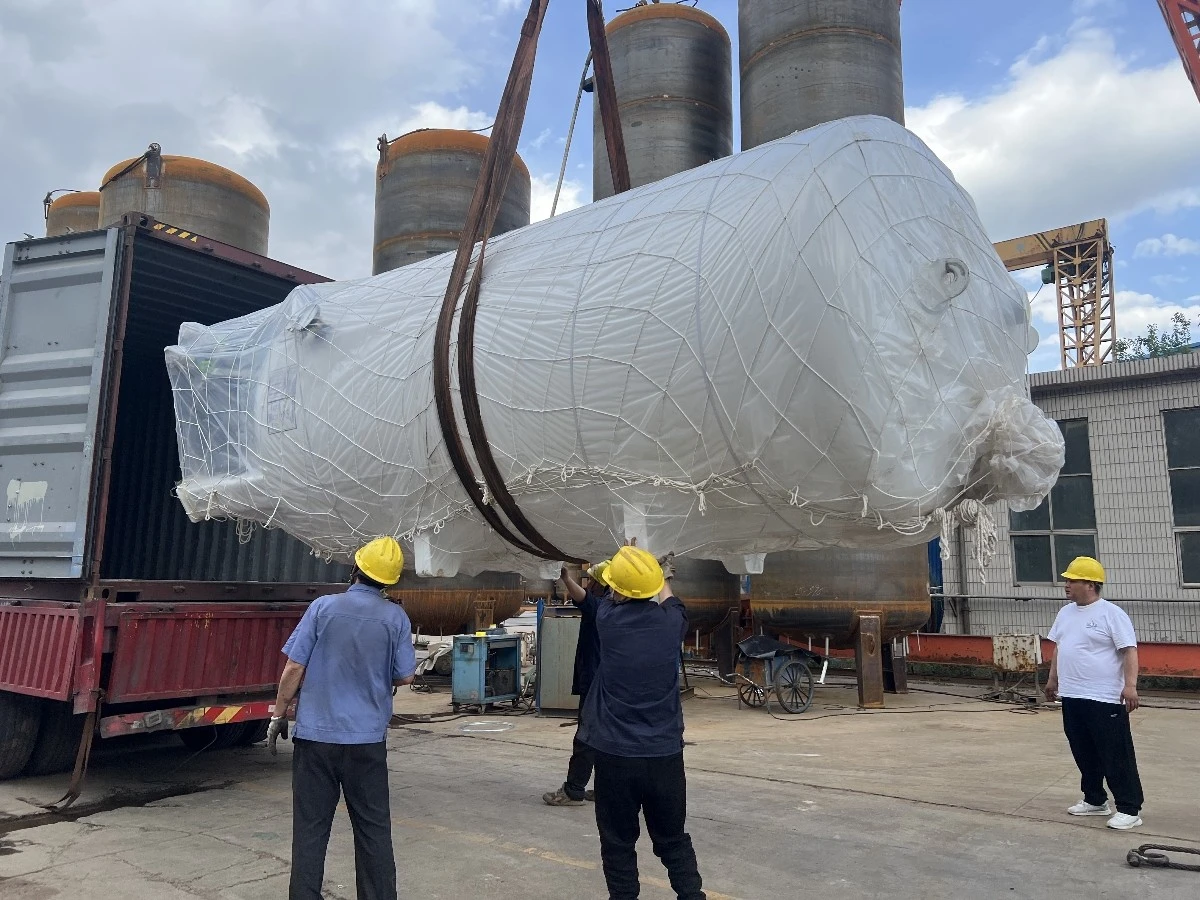

Co2 tank packaging and shipping:
Daily Shipping News
Application scenarios of cryogenic liquid storage tanks
Food industry: liquid CO₂ quickly freezes seafood, meat and baked goods;
Industrial gas: provides a stable gas source for laser cutting and welding equipment;
Fire protection system: as a gas tank for dry ice fire extinguishing device, it is suitable for fires of precision instruments;
Chemical production: participates in chemical reaction cooling or solvent recovery;
Dry ice manufacturing: provides raw materials for dry ice machines to meet the needs of cold chain logistics.
