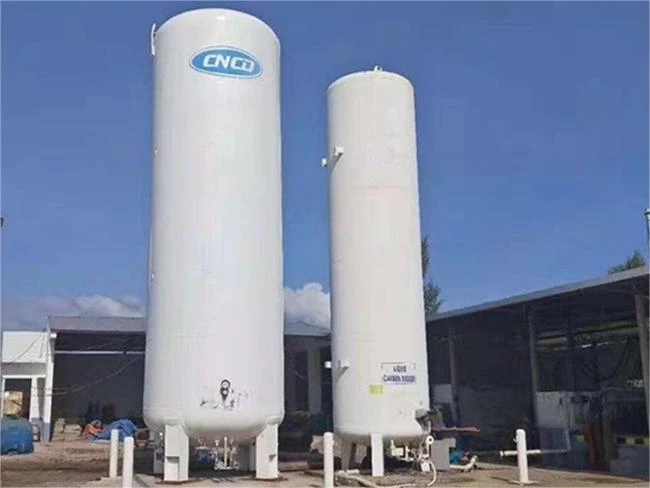

20 cubic meters cryogenic liquid carbon dioxide storage tank
The 20 cubic meter cryogenic liquid carbon dioxide storage tank is a vacuum insulated pressure vessel specially used for storing liquid carbon dioxide (temperature about -20℃ to -30℃, pressure 0.7~2.5MPa). It adopts a double-layer structure (liner + shell), with the middle layer vacuumed and filled with insulation materials (such as pearl sand or multi-layer winding insulation layer) to ensure ultra-low thermal conductivity, suitable for long-term storage and transportation.
Core design features
- Insulation performance:
Vacuum multilayer insulation (VIP) or high vacuum powder insulation, daily evaporation rate ≤0.3%~0.5%.
Radiation-proof screen design to reduce heat penetration.
- Material safety:
Inner liner: austenitic stainless steel (such as S30408/S31603), resistant to low-temperature corrosion.
Casing: carbon steel (Q345R) or stainless steel, anti-corrosion coating on the outer surface.
- Pressure control:
Equipped with safety valve, bursting disc, pressure/temperature sensor, the working pressure is usually 1.6~2.16MPa.
Optional self-pressurization system for easy liquid output.
- Structural optimization:
Vertical or horizontal design (according to site requirements), bottom support/saddle anti-seismic design.
The pipeline system includes liquid/gas phase interface, pressure relief valve, and liquid level gauge (magnetic flap or radar type).
|
Design Specification
|
||
|
Design Standard
|
GB150.1~GB150.4-2011 (Pressure vessel)
GB/T18442-2011 (Fixed vacuum insulated cryogenic pressure vessel) TSG 21-2016(Safety technical supervision regulations for stationary pressure vessels)
|
|
|
Model:CFL20/2.16
|
Inner Vessel
|
Outer Vessel
|
|
Medium
|
LCO2
|
Perlite
|
|
Working temperature:(°C)
|
-40~-18
|
Normally
|
|
Working Pressure:(Mpa)
|
2.16
|
-0.1
|
|
Minimum design metal temperature: (°C)
|
-40
|
-20
|
|
Design Pressure: (Mpa)
|
2.27
|
-0.1
|
|
Corrosion allowance:(mm)
|
0
|
1
|
|
Welding joint coefficient:
|
1
|
0.85
|
|
Material:
|
16MnDR
|
Q245R
|
|
Full Volume: (m³)
|
31.6
|
54.6
|
|
Effective Volume:(m³)
|
30
|
23
|
|
Air pressure test pressure
(MPa):
|
2.61
|
0.11
|
|
Vessel Thickness:(mm)
|
20
|
22
|
|
Head Thickness:(mm)
|
8
|
10
|
|
Dimensions:(mm)
|
8875*2900*2900(Can be customized)
|
|
|
Filling Rate:(%)
|
95%
|
|
|
Design life: (Years)
|
20
|
|
|
Tank empty weight:(kg)
|
17961
|
|

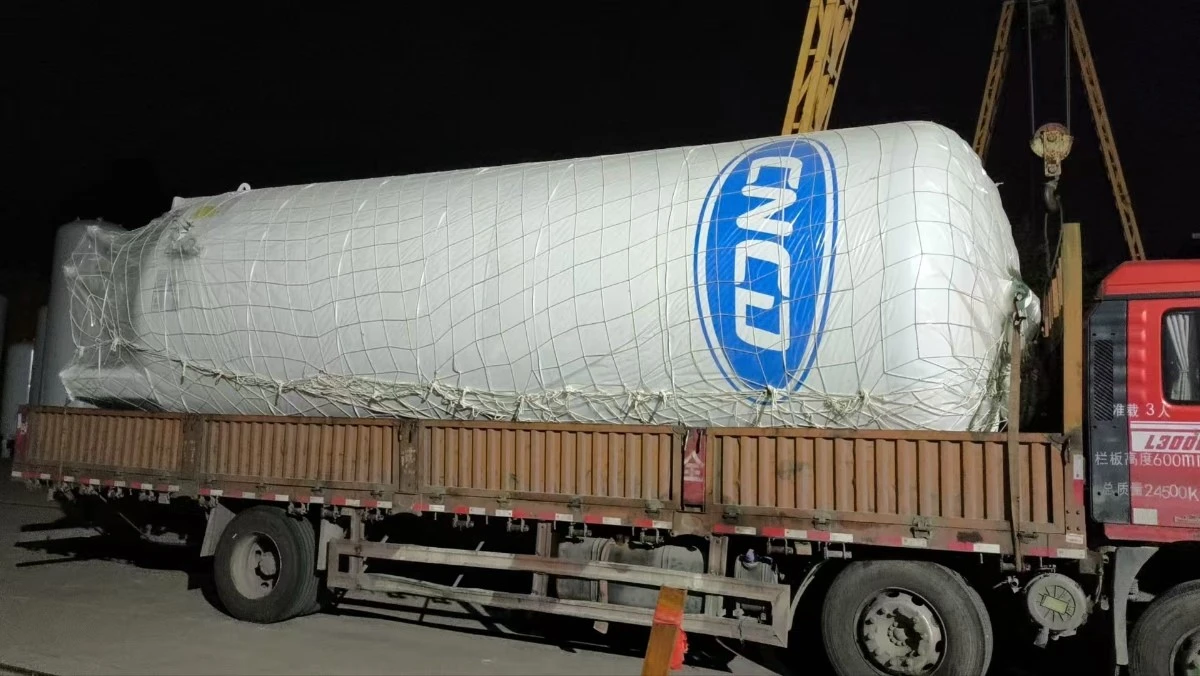

Co2 tank packaging and shipping:
Daily Shipping News
The 30-cubic-meter large liquid carbon dioxide (LCO₂) storage tank completed the whole process quality inspection and was successfully shipped from Shanghai Port to a Southeast Asian country, providing key equipment support for local food preservation, medical cold chain, industrial gas supply and carbon emission reduction projects. This delivery marks that CNCD's technical strength in the field of low-temperature storage and transportation equipment has been recognized internationally again, and continues to promote the low-carbon upgrade of the industrial chain in Southeast Asia.
