Product Description
Warmly welcome to visit our website >> and view more relevant product
|

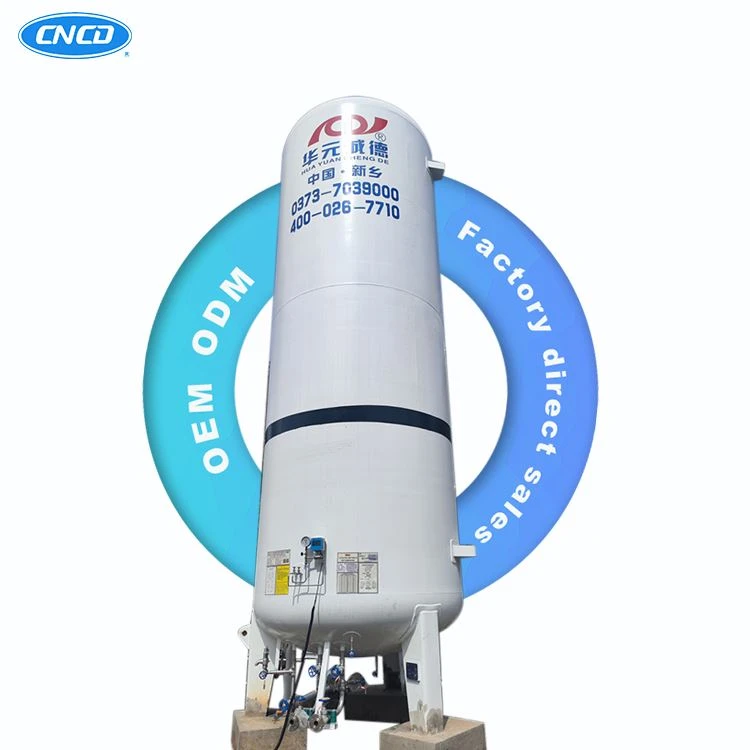

Specification For Cryogenic Liquid CO2 Storage Tank
|
||||||
|
Model
|
Effective volume (M3)
|
Working pressure(bar)
|
Dimension
(mm)
|
Weight
(kg)
|
Placement Type
|
Design Code
|
|
CFL-5/2.16
|
5
|
21.6
|
Φ2000*5130
|
4450
|
Vertical
|
CE
ASME
|
|
CFL-10/2.16
|
10
|
21.6
|
Φ2100*7170
|
6986
|
||
|
CFL-15/2.16
|
15
|
21.6
|
Φ2500*6912
|
8810
|
||
|
CFL-20/2.16
|
20
|
21.6
|
Φ2500*8756
|
11328
|
||
|
CFL-25/2.16
|
25
|
21.6
|
Φ2900*7728
|
17961
|
||
|
CFL-30/2.16
|
30
|
21.6
|
Φ2900*8875
|
14660
|
||
|
CFL-50/2.16
|
50
|
21.6
|
Φ3200*11320
|
26097
|
||
|
CFL-60/2.16
|
60
|
21.6
|
Φ3200*13180
|
30220
|
||
|
CFL-100/2.16
|
100
|
21.6
|
Φ3500*16870
|
49627
|
||
Description of cryogenic liquid co2 storage tank
Cryogenic Liquid Co2 Storage Tank Is For Double Wall, The Inner Material Adopted 16MnDR Stainless Steel,The Outer Material Using Q245R,Carbon Steel. It Conclude Vertical And Horizontal Structure, Adopt The Use Of Vacuum Powder Adiabatic, With The Advantage Of Compact Structure , Low Issuance Date,Small Footprint,Centralized Control, Safe,Reliable, Easy Operation And Maintenance. The Design Of The Shell And Support System Can Withstand The Relevant External Forces Produced During Manufacture, Transportation, Installation And Use. The Bottom Of The Cryogenic Tank Is Provided With a Complete Set Of Valves, Meters And Safety Devices For Operation.
Co2 storage tank's Features: 1. Inner vessel: 16Mndr material which is suitable for cryogenic working condition is adopted. The structure design is optimized and reasonable. 2. Inner pipeline: The flexible design and inspection is to ensure the quality and appearance of the products. Unique energy-saving pipeline design can ensure the safe use of the product in any medium. 3. Outer vessel: Using Q245R materials, it is equipped with special stainless steel transport support, and lateral lifting lugs to transport easily and reduce the installation cost greatly. 4. Vacuum insulation: We use unique leak detection process, high quality pearl sand, high vacuum multilayer insulation, special sand irrigation process, so that our products have excellent vacuum insulation performance.
Send Inquiry>>
Right Choice, Right Now
Packing & Delivery
Packaging of liquid co2 tank:
1.5cbm Cryogenic Liquid Co2 Tank Can Be Packed Into One 20GP 2.10cbm And 20cbm Liquid Co2 Storage Tank Can Be Packed Into One 40HQ 3.More Than 20m3 Co2 Tank Can Be Packed In Frame Reinforcement Or Bulk Ship.
Company Profile
Xinxiang Chengde Energy Technology Equipment Co., Ltd. (original Chengde Gas Equipment Co., Ltd.) was founded in 2002, it is a professional engaged in the research, development, sale and service of cryogenic (liquid oxygen ,liquid nitrogen,liquid argon,liquified natural gas,liquid co2 )storage tank, cryogenic liquid pump, ambient vaporizer liquid dewar cylinder, lpg tank, 20ft iso tank container,microbulk tank,small liquid nitrogen tank and related products. Now we have over 400 employees, covers area over 60000 square meters with capability of manufacturing over 2000 tanks every year. We also have ASME,CE,ISO certificates. We have a good reputation and sales performance in the Chinese market,our products also have exported to more than 68 countries ,such as Thailand,Indonesia,Egypt,Peru,Spain,Poland,Russia,Pakistan,Myanmar,Kazakhstan,Mongolia, Oman, Iraq, Saudi Arabia, Georgia. Burma, Korea, Kampuchea, Philippines, Romania, India etc.also have branch office in the Vietnam.We have rich experience in production and exported.We have a branch in Vietnam, which can provide on-site installation and after-sales service for the local and surrounding countries. Click for more information >>
Our Advantages.
1. Our own factory with more than 20 years experience in production, manufacture and installation.
1. Our own factory with more than 20 years experience in production, manufacture and installation.
2. We provide OEM customized service to produce and process products according to your drawings and requirements.
3. Our professional R&D and QC team can strictly control the product quality to meet your requirements.
4. We provide the best service according to your requirements,from production, processing to packing, etc.
5. Our products are of high quality and low price, and the delivery is on time.
6. We have a professional sales team to provide you with fast and enthusiastic service throughout the process.
Our Services. 1.Product quality control and delivery time is strictly controlled; 2. Direct manufacturing factory offering competitive price; 3. All the inquiries will be replied within 4 hours; 4. OEM & ODM service are available; 5. Providing first-class after-sales services to the customers.
Exhibition
Our company often participates in domestic ,foreign exhibitions .if possible, we hope you can come to visited exchange.
Certifications
Customer Photos
Many customers come to visit our company, they are very satisfied with our products and trust more
FAQ
1. Q: Are you a direct manufacturer and exporter from China?
A: Yes, we are. We have our own factory and international sales department. We produce our own products all by ourselves.
2. Q: Where's your factory located?
A: Our factory locates in xinxiang City, henan Province, China.You are warmly welcome to visit our factory anytime.
3.Q: How long is the lead time?
A: Production usually starts after receiving the deposit, the production cycle is usually 45-60 working days, and there are different production cycles for various materials. If you need this shipment urgently, please let us know and we will try our best to give it priority.
4. Q: If I need my own size?
4. Q: If I need my own size?
A: We need to make new drawings according to our own size, which will lead to longer production cycle, so generally we recommend that you can use our existing similar mold size. 5. Q: How can I pay you?
A: You need to pay 30% deposit before production and 70% balance upon shipment.The most common way to pay us is by T/T. Western Union is also acceptable.
6. Q: Can I check quality of goods before delivery?
6. Q: Can I check quality of goods before delivery?
A: Yes, either you or ur company colleagues, or a third party is welcome to our factory to do the inspection before delivery.
7. Q: How the goods are delivered to me?
A: we advise to ship by sea. We can send goods to your assigned Shipping Forwarder(FOB price). Or if you don't have one, we can quote you CIF price
Are you interested in any more info? If yes, drop us a message
Hot Tags: tank container high pressure cryogenic lco2 storage tank, China tank container high pressure cryogenic lco2 storage tank manufacturers, suppliers, factory, lng marine transport tank, marine lng logistics tank, liquid tanker truck, tanker truck lighting, lng marine storage solution, marine lng tanker tank
