Products Description
With rapid scientific and technological development, the material-store ad technology by use of low temperature storage tanks under normal temperature gets mature day by day. In China, more and more normal-pressure low temperature storage tanks tending to large-scale type are constructed. Compared with other storage methods, the normal pressure storage tank has more advantages; for an example, it is safer due to its low storage pressure if compared with vacuum tank and spherical tank. Low temperature storage tank built in large size occupies a vary small area, thus reducing storage cost. It is simple in structure and easy in construction, thus reducing construction cost. The common storage medium, such as Liquefied natural gas, LNG (-162℃),liquic oxygen(-183℃), liquid nitrogen(-196℃)liquidargon(-186℃), liquid etha ne (-89℃), and ethylene(-104℃).etc, can be stored.
We are cryogenic gas experts
Low temperature technology, the future of storage and transportation.
Pressure vessels, quality choice.
Professional low temperature storage, help efficient development.
-
55 +technical researchersprofessional technical R&D team
-
70 +countries exportedEurope, South America, Middle EastRussia, Central Asia, Southeast AsiaAfrica. etc
| Model | Working Medium | Volume(M3) | Weight | Size(mm) | Working Pressure |
| CFL-5/0.8 | LO2/LAR/LN2 | 5 | 3412 | Φ2000*5130 | 0.8MPa |
| CFL-10/0.8 | 10 | 5378 | Φ2100*7170 | ||
| CFL-15/0.8 | 15 | 6415 | Φ2500*6912 | ||
| CFL-20/0.8 | 20 | 8673 | Φ3000*6100 | ||
| CFL-30/0.8 | 30 | 12899 | Φ2900*8870 | ||
| CFL-50/0.8 | 50 | 18960 | Φ3100*12058 | ||
| CFL-100/0.8 | 100 | 34480 | Φ3600*15947 | ||
| CFL-150/0.8 | 150 | 53500 | Φ3600*23000 | ||
| CFL-200/0.8 | 200 | 65500 | Φ3924*26000 | ||
| CFL-5/1.6 | LO2/LAR/LN2 | 5 | 3945 | Φ2000*5130 | 1.6MPa |
| CFL-10/1.6 | 10 | 6787 | Φ2000*7895 | ||
| CFL-15/1.6 | 15 | 8628 | Φ2400*7552 | ||
| CFL-20/1.6 | 20 | 10744 | Φ2400*9371 | ||
| CFL-25/1.6 | 25 | 13500 | Φ2700*8980 | ||
| CFL-30/1.6 | 30 | 14640 | Φ2700*10310 | ||
| CFL-40/1.6 | 40 | 19884 | Φ3100*9985 | ||
| CFL-50/1.6 | 50 | 23370 | Φ3100*12058 | ||
| CFL-100/1.6 | 100 | 44050 | Φ3400*17930 |
Project Case
CNCD's products are exported to more than 70 countries and regions, with branch offices in Vietnam.CNCD has obtained ASME, CE, CCS, ISO etc. CNCD's production area is 69,000 square meters, more than 650 employees.Every year production more than 2000pcs cryogenic tanks and related products.
Xinxiang Chengde Energy Technology Equipment Co.,((hereinafter referred to as "Xinxiang Chengde")was found in 2002,We are a Science and technology-based enterprise dedicated to the research and development, design, manufacturing, installation and service of pressure vessels, cryogenic equipment, gas equipment, marine products, and special vehicles.It is an outstanding private enterprise , an AAA enterprise in quality integrity system construction, a "specialized, special and innovative" small and medium-sized enterprise in Henan Province, and a national high-tech enterprise.
Professional team
55+ technical researchers
professional technical R&D team
Product Patents
80 product patents
Eighty patents protect anddemonstrate the technologicastrength
69000M
square meters
500+
employees
2000+
sets tanks one year
70+
countries exported
Our exhibitions and customers
CNCD's products are exported to more than 70 countries and regions
China
exhibitions
Dubai
exhibitions
Russia
exhibitions
China
exhibitions
Russia
customers
Palestine
customers
South America
customers
Syria
customers
Honor and qualification
Official certification, professional after sales service.
Pressure pipe
BV
CCS
GB
ASME
1. Can you provide installation and debugging services?
According to your requirements, we can provide you with:
(1) On-site installation and construction services;
(2) On-site technical engineer guidance service;
(3) Online technical guidance service. And we provide you with the "installation, debugging and operation instructions" and other graphic materials and related video and audio materials shipped with the equipment. Considering the cost, we recommend that you use our online technical guidance and audio-graphic guidance materials to complete the equipment installation. 100% of our customers can use the instructions and online guidance to complete the equipment installation.
2. How about the delivery time?
Usually we need about 45-60 work days produce time. 15 days after receiving the full payment.
3. Do you accept product customization?
Of course, we are running our own factory, accept OEM product customization services, you can send your specific requirements to us, we have a professional design engineer to provide you with customized design services.
4. What is the service life of your product?
Designed service life of 10 years;It can be extended according to the actual use situation. Some of our customers have used it for 30 years.
5. Can I put my logo on the product?
We support product painting color and logo customization.Please provide a vector picture or HD picture of LOGO.
Daily shipment news

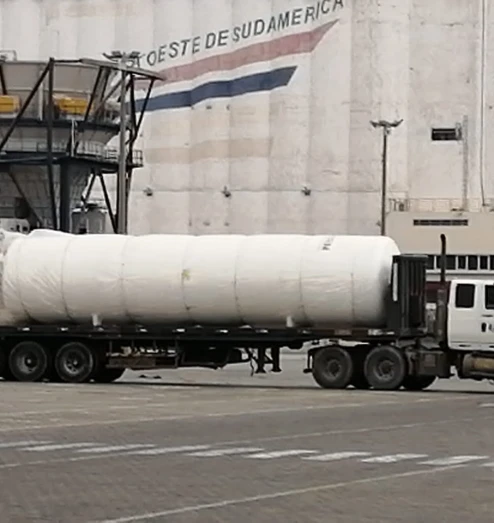

Our company successfully exported vertical cryogenic liquid storage tanks to Peru, adding new achievements to the global layout
Recently, our company successfully exported a vertical cryogenic liquid storage tank to Peru, marking our further expansion in the South American market. As a leading manufacturer in the field of cryogenic liquid storage and transportation equipment, our company's products have been exported to more than 70 countries and regions around the world, winning wide acclaim from customers with excellent quality and professional services.
