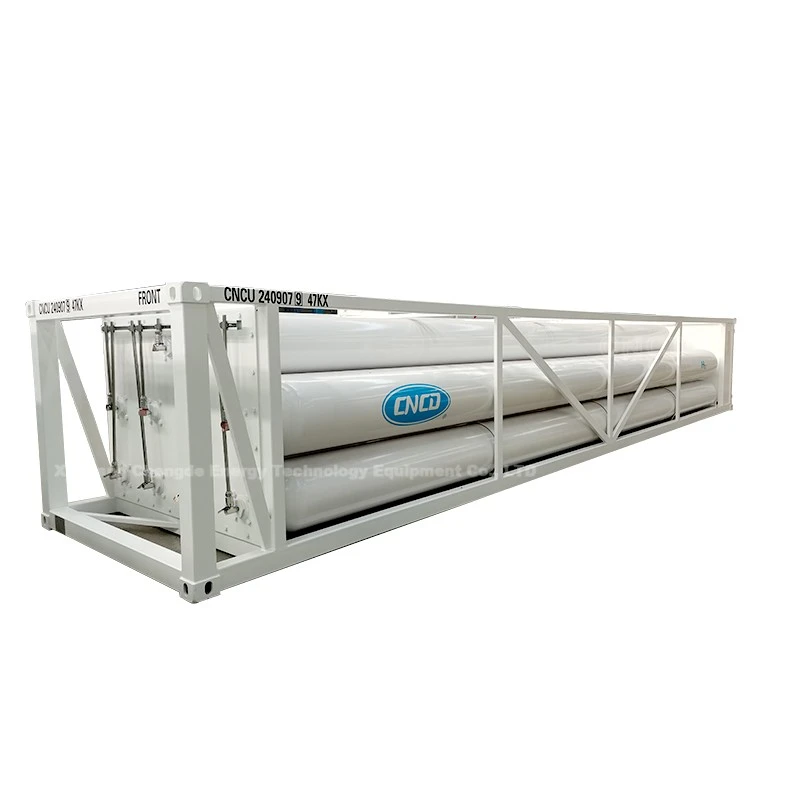

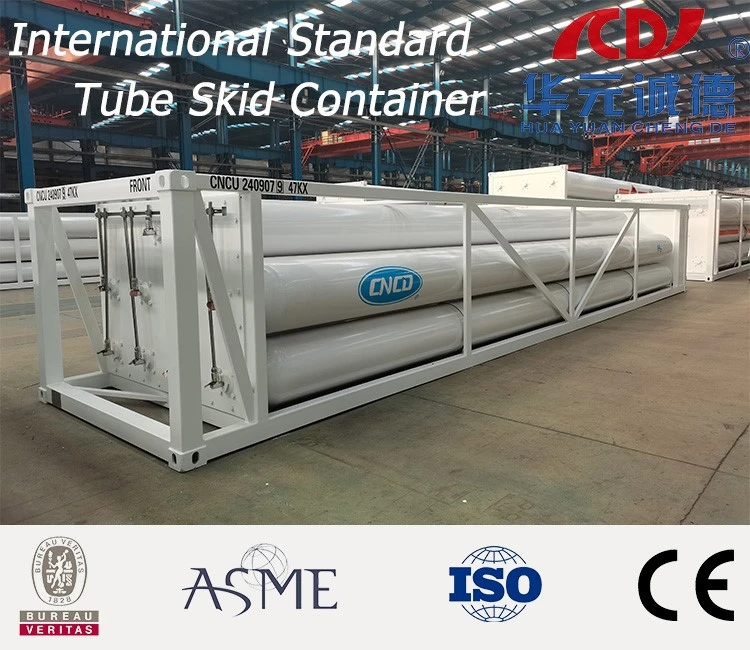

Cng Tube Skid Bundle Container
Product Description
Large capacity seamless steel gas cylinders are mainly usedto transport CNG (compressed natural gas). The cylinders which can storage natural gas under pressure 20Mpa or 25Mpa are made of 4142 seamless steel tube gas cylinders according to the authority of the US standards and relevant international standards. Our standards make the strict in desigh, manufacture, inspection and acceptance for these type cylinders.
♦Application
For CNG transport and temporary storage.
♦Characteristics
1.Frame structure integrated comstructed, chassis dismantlable
2.Gas cylinders can be assembled freely and can be assembled as percustomer's requirement
3.20ft and 40ft container is convenient for marine shipping,road transport and enter limited space more freely
♦Product Details
Standard
Cylinder according to International Standard: ISO 11120,DOT
Container Frame standard: ISO 1496/ISO668
Container Corner fitting Standard: ISO 1161
Product Parameters
|
Model |
Working Pressure (bar) |
Total water volume (m3) |
Total gas volume (Nm3) |
Container tare quality (kg) |
Medium quality (kg, calculate by CNG) |
Filling medium |
|
GSJ08-2320 (40FT) |
250 | 18.56 | 5846 | 22400 | 4176 |
CNG or other compressed gas |
|
GSJ09-2320 (40FT) |
20.88 |
6577 | 25715 | 4698 | ||
|
GSJ10-2320 (40FT) |
23.2 | 7308 | 28150 | 5220 | ||
|
GSJ11-2320 (40FT) |
25.52 | 80.38 | 30585 | 5740 | ||
|
GSJ12-2320 (40FT) |
27.84 | 8769 | 33020 | 6264 | ||
|
GSJ08-2450 (40FT) |
19.6 | 6174 | 24240 | 4410 | ||
|
GSJ09-2450 (40FT) |
22.05 | 6945 | 27020 | 4961 | ||
|
GSJ10-2450 (40FT) |
24.5 | 7717 | 29600 | 5512 | ||
|
GSJ11-2450 (40FT) |
26.95 | 8489 | 32180 | 6063 | ||
|
GSJ12-2450 (40FT) |
29.4 | 9261 | 34760 | 6615 | ||
|
GSJ08-1050 (20FT) |
8.4 | 2625 | 14068 | 1889 | ||
|
GSJ12-1050 (20FT) |
12.6 | 3969 | 19632 | 2835 |
Inspection body
Bureau Veritas (BV)
Lloyd's Register Classification Society (China)

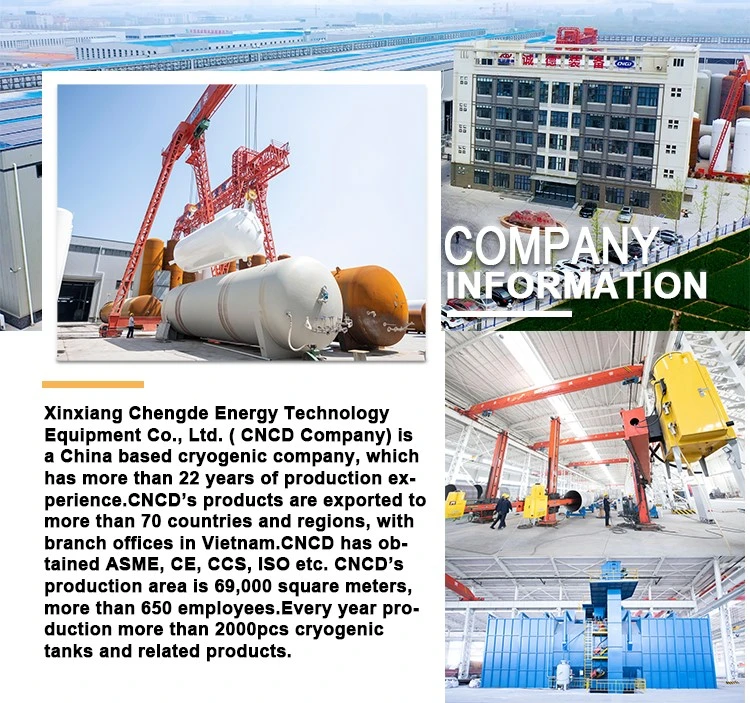

Our company committed to the production, installation, research and development of natural gas equipment. We have more than fifty professional technicians and solid quality assurance system, besides, qualifications we have:A1,A2,B1,B3,C2 and C3 grade pressure vessel manufacturing;GB1,GC1 and GC2 pressure tube installation.Certificates we have acquired:1SO9001, ISO14001 and 1SO45001 management system, ISO international standard(BV), container ADR, TPED, Russia's GOST, Singapore's MOM, US ASME.
Our advantages
The Companies set up 3 sub-systems and 32 quality control sub-systems according to TSG 20004-2007 and based on the product characteristics and critical process control points, set up 9 special inspection posts in accordance with the axis of production line and processes area; forming the point-to-overall, cover vertical and horizontal, and sound quality control and guarantee system, meanwhile we created quality assurance by the production, testing technology and means of advanced spark direct read spectrometer, digital live-time imaging non-destructive testing system, high vacuum compressor sets, CNC spinning equipment, CNC plasma beam welding, electrostatic adsorption coating line etc.
Exhibition & Customers
Daily Shipping News

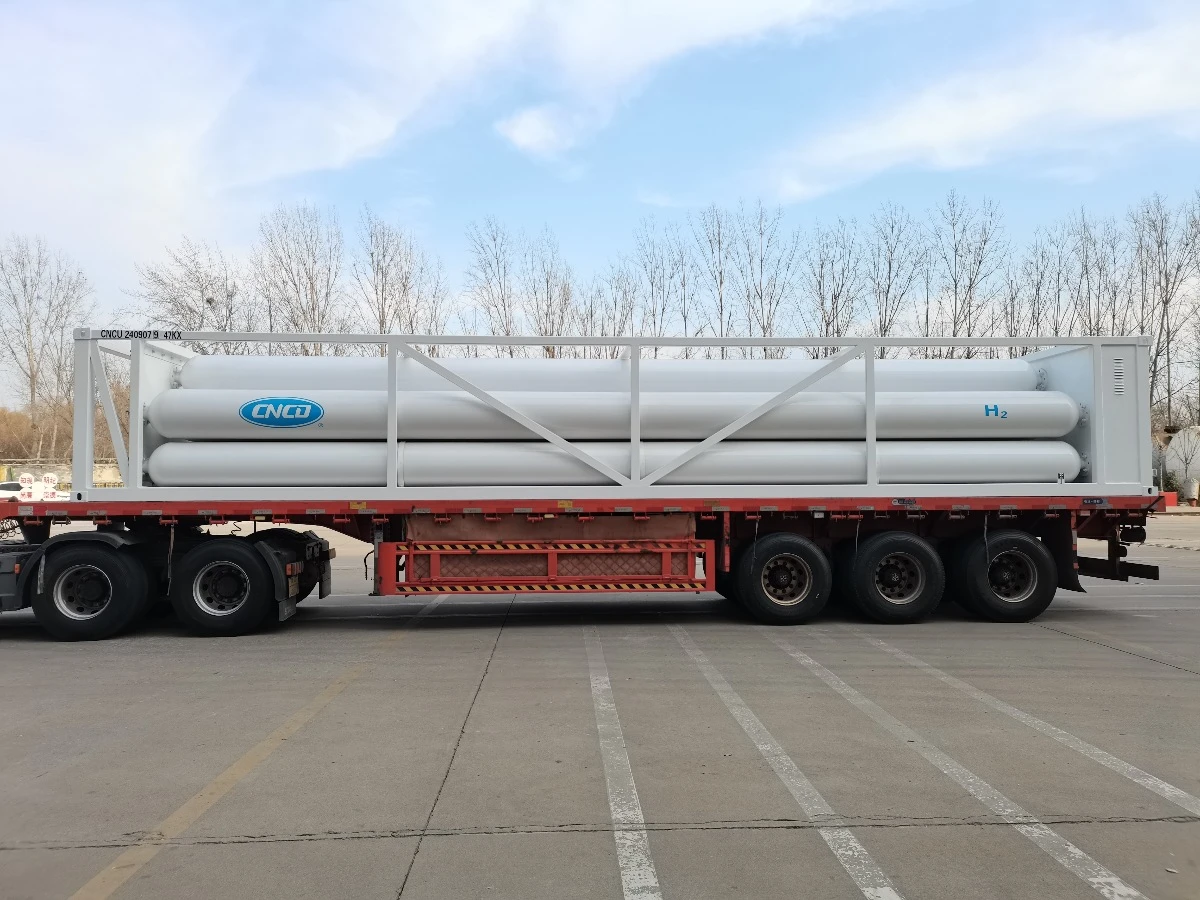

The 40ft pipe skid and bundle container shipped this time is the result of close cooperation between the company's technical team and the production department. From the design stage, the technical staff fully considered the strict requirements of foreign customers for equipment performance, safety standards and special working conditions, and used advanced design concepts and calculation software to repeatedly optimize the product structure.
During the production process, the company strictly follows the international quality management system standards, selects high-quality raw materials, and introduces advanced processing equipment and processes to ensure that every component meets the requirements of high precision and high quality. Key links such as welding, assembly, and testing are operated by experienced professionals and undergo multiple strict quality inspection processes, providing a solid guarantee for the reliability and stability of the product.
